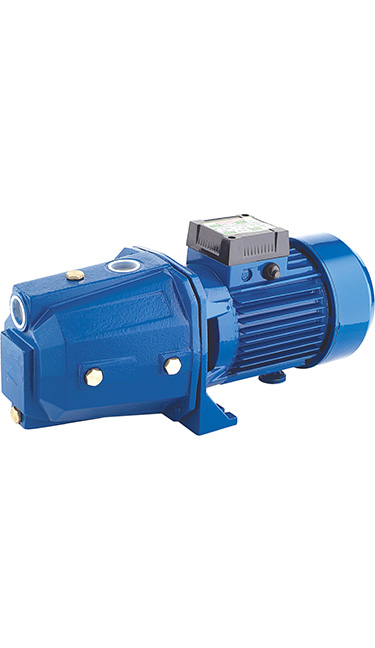

JSW Electric Jet Pump
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance
JSW pump is designed for shallow wells up to 25' deep or to boost municipal water pressure
The JSW series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, with stainless steel pump body and spare part.They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Maximum fluid temperature up to +40℃
Maximum sand content: 0.25%
Maximum suction lift: 9m
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906
Impeller material: plastic or brass

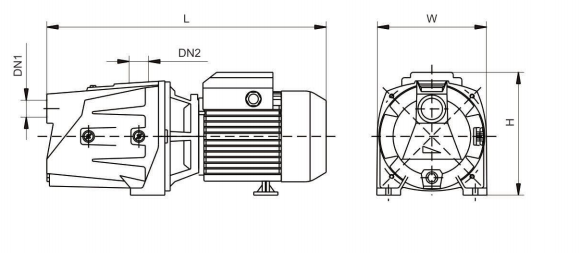

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1~ | 3～ | |||
| D-JSW(m)-6M | 1" | 1" | 150 | 172 | 340 | 12 | 11.5 |
| D-JSW(m)-10M | 1" | 1" | 180 | 208 | 417 | 16 | 15.5 |
| D-JSW(m)-10H | 1" | 1" | 180 | 208 | 417 | 16 | 15.5 |
| D-JSW(m)-10L | 1" | 1" | 180 | 208 | 417 | 16 | 15.5 |
| D-JSW(m)-12M | 1" | 1" | 180 | 208 | 417 | 17 | 16.5 |

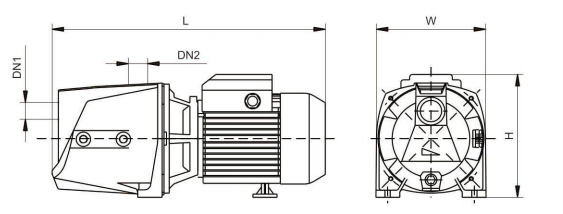

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1～ | 3～ | |||
| D-JSW(m)-15M | 1% | 1" | 208 | 236 | 506 | 24.5 | 23.5 |
| D-JSW(m)-15H | 19 | 1" | 208 | 236 | 506 | 24.5 | 23.5 |
| D-JSW(m)-15L | 17 | 1" | 208 | 236 | 506 | 24.5 | 23.5 |
| D-JSW(m)-20M | 12 | 1" | 208 | 236 | 506 | 26 | 25.5 |
| D-JSW(m)-20H | 17 | 1" | 208 | 236 | 506 | 26 | 25.5 |
| D-JSW(m)-20L | 12 | 1" | 208 | 236 | 506 | 26 | 25.5 |
Other voltages or frequency 60 Hz
Products Description
The JSW series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, with stainless steel pump body and spare part.They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.

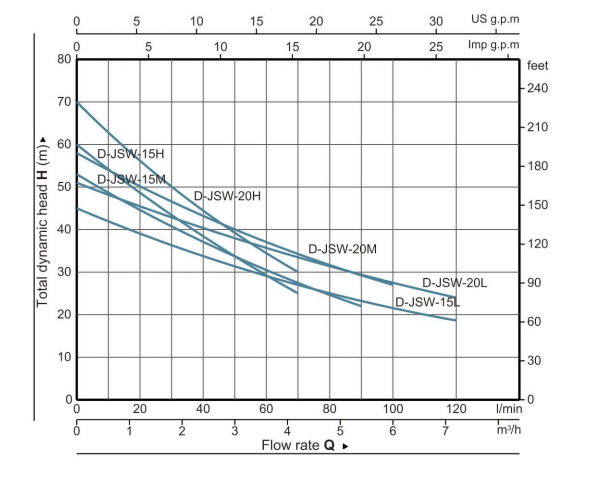

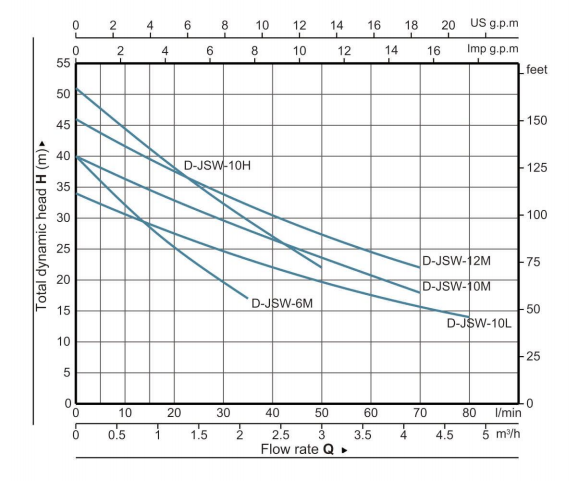

Performance Curve
