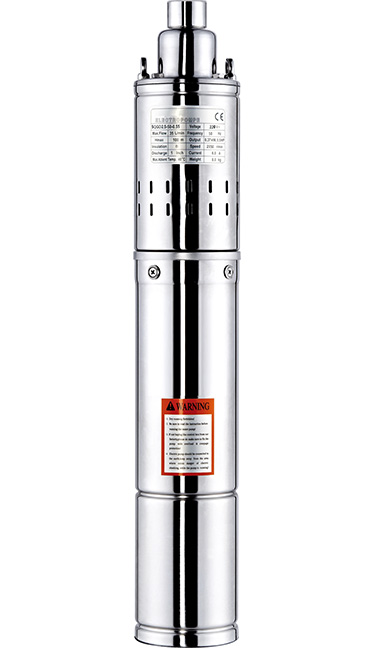

5QG Stainless Steel Screw Submersible Water Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for transferring water from wells, ponds, lakes and cisterns.
5QG series are suitable for wells over φ130mm
5QG screw submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for sprinkler lawn irrigation, household tap water, swimming pool filling, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Maximum fluid temperature up to +40℃
Maximum sand content: 3%
Minimum well diameter: 5"
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Single phase motor with built-in capacitor
Curve tolerance according to ISO 9906
| Components | Material |
| Delivery casing | AISI 304 SS |
| Strainer | AISI 304 SS |
| Motor extemal casing | AISI 304 SS |
| Top chock | Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic |
| Shaft | AISI304 SS-ASTM 5140 |
| Seal lubricant oi | Oil for food machinery and pharmaceutic use. |
Special mechanical seal
Other voltages or frequency 60Hz
Products Description
5QG screw submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for sprinkler lawn irrigation, household tap water, swimming pool filling, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.

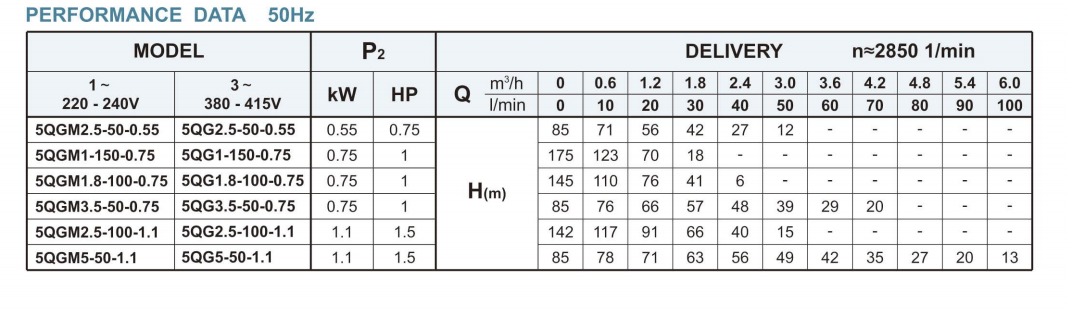

Performance Curve
