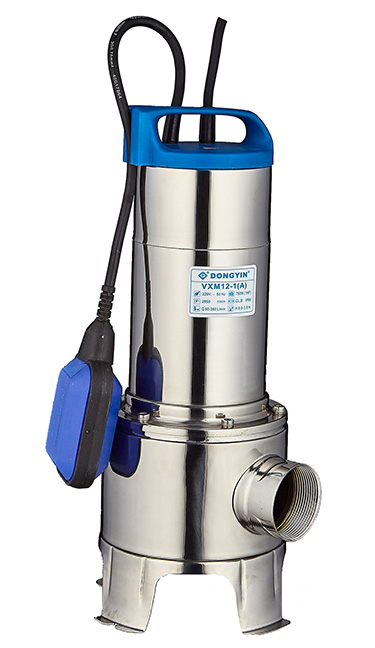

VX Stainless steel Sump Submersible Pump
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance.
VX series provides high flow and quick drainage for the submersible sump pump in low noise.
The VXD series submersible sewage water pump is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.They are easy to use, they are suitable for use in applications such as clearing dirty water,discharging domestic waster water,and for emptying collection traps containing particle up to a maximum of φ35mm.
Maximum fluid temperature up to +40℃
Maximum solid can pass:35mm
It's available to equip with floating switch

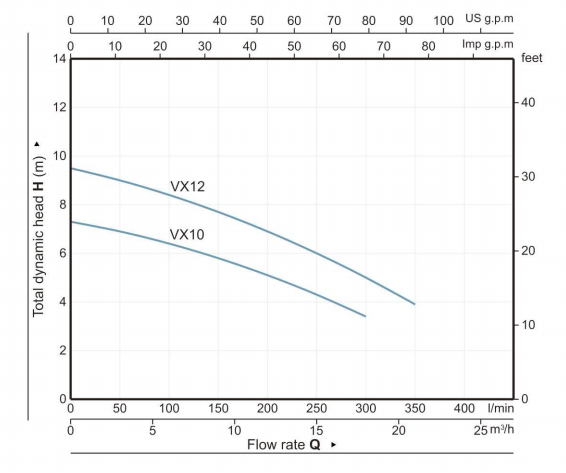

Curve tolerance according to ISO 9906
|Delivery casing||AISI 304 SS|
|Suction lantern||AlSI 304 SS|
|Diffuser||①AISI 304 SS ②Cast-iron G20 UNI5007|
|lmpeller||AISI 304 SS|
|Motor external casing||AlSI304 SS|
|Top chock||AlSI 304 SS|
|Bottom support||AlSI 304 SS|
|Shaft||AISI 304 SS-ASTM5140|
|Seal lubricant oil||Oil for food machinery and pharmaceutic use.|
Other voltages or frequency 60Hz
Cast iron pump body available
Float Switch for optional
