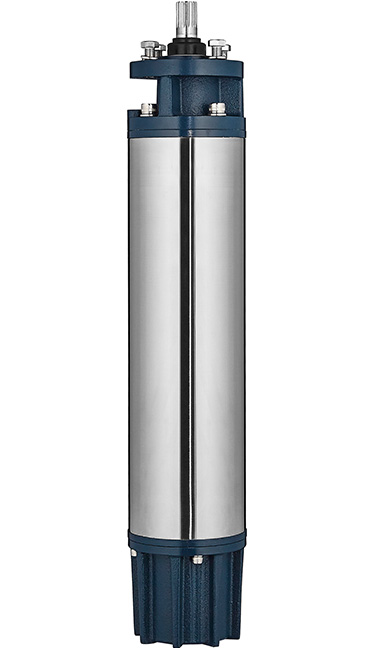

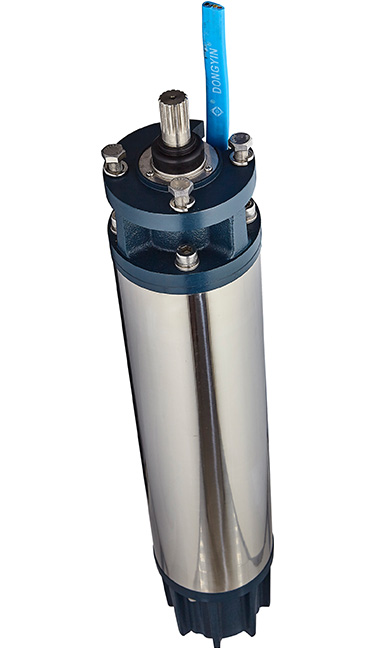

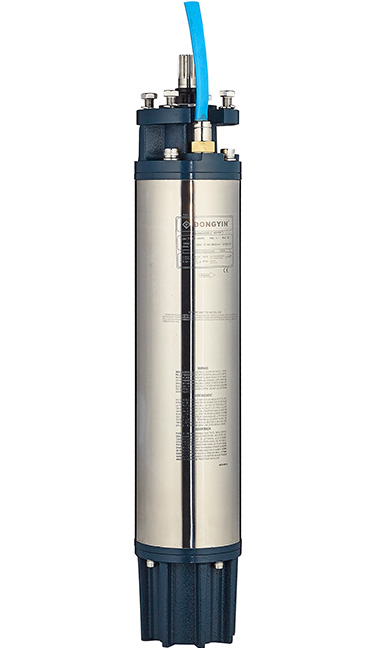

6YC Oil filled Submersible Motor
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for tranfering water from wells, ponds, lakes and cisterns.
6YC series motors are suitable for wells over φ150mm
For water supply from wells or reservoirs
For domestic use,for civil and industrial applications
For garden use and irrigation
Speed: 2850rpm
Insulation class: F
Protection grade:IP 68
Maximum fluid temperature up to +35°C
Minimum well diameter: 6"
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
①Direct start (1 cable)
②Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
| Components | Material |
| Motor external casing | AISI 304 SS |

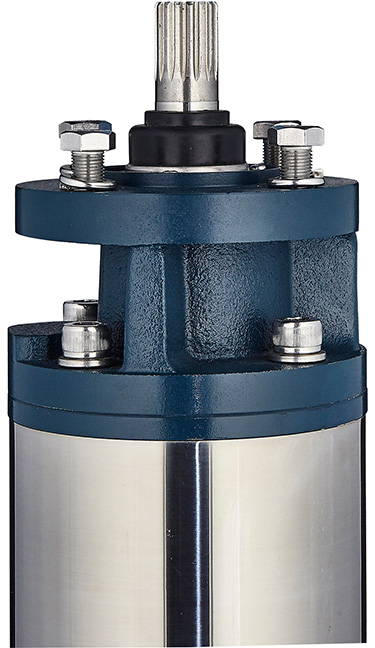

| Top chock | Cast-iron ASTM N0.30 |

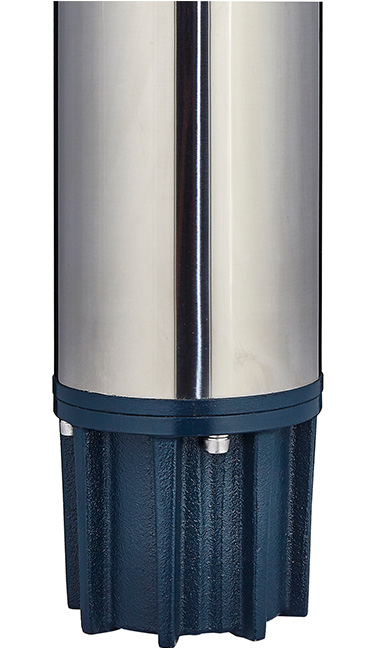

| Bottom support | Cast-iron ASTM N0.30 |
| Seal | NBR Carbon-SIC/TC |
| Shaft | AISI304 SS-ASTM 5140 |
Special Bearing
Other voltages or frequency 60Hz
Products Description
For water supply from wells or reservoirs
For domestic use,for civil and industrial applications
For garden use and irrigation
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
①Direct start (1 cable)
②Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
| Components | Material |
| Motor external casing | AISI 304 SS |
| Top chock | Cast-iron ASTM N0.30 |
| Bottom support | Cast-iron ASTM N0.30 |
| Seal | NBR Carbon-SIC/TC |
| Shaft | AISI304 SS-ASTM 5140 |

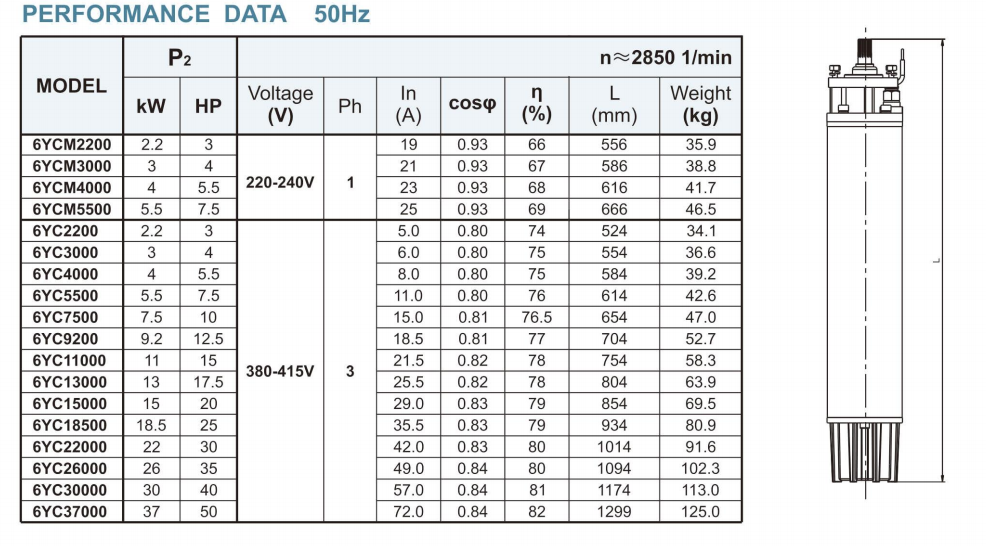

Performance Curve
